Our Newest tool probe mounts in a Single T-Slot freeing up your table.
Utilizing a single T-Slot and the table face for mounting makes this a truly universal mounting system.
Kinematic mount ensures repeatability.
Coupling forces provided by single rare earth magnet.

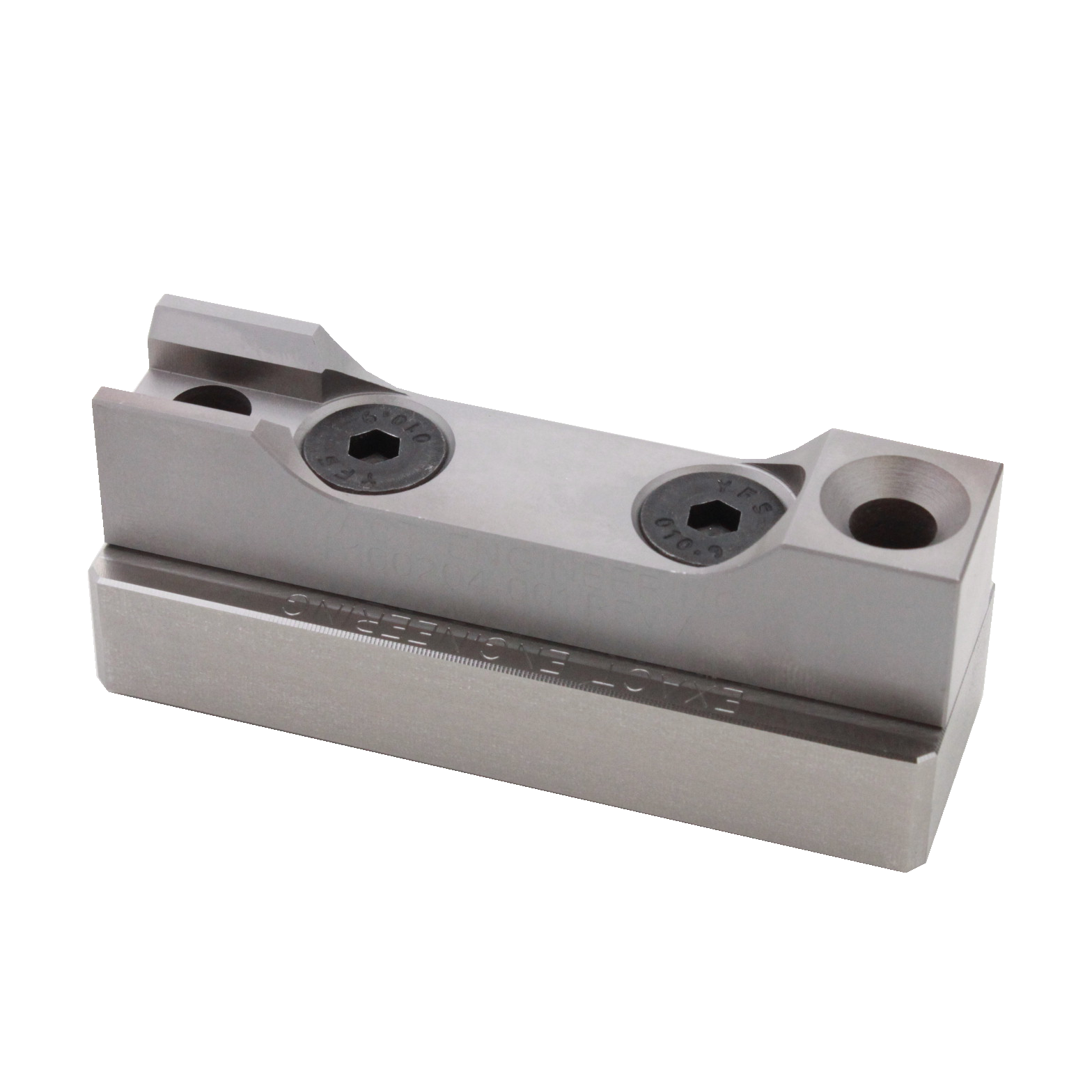

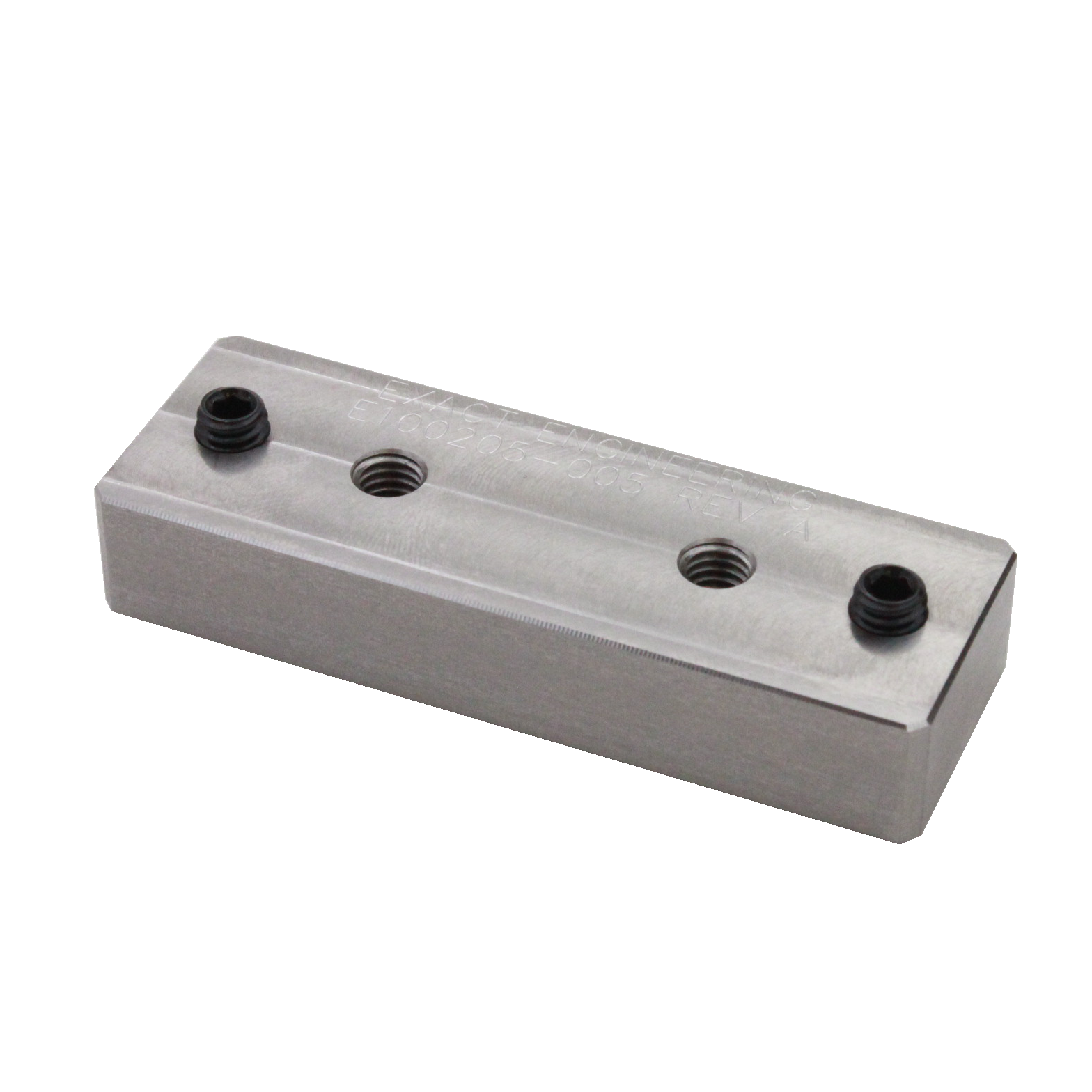

Hardened A2 tool steel Kinematic T-Nut fits machines any 5/8" or larger T-Slot.
303SS Machinable T-Nut Adapter provided to custom fit your machine. Simply machine the T-Nut Adapter to the proper height. Instructions included with item.
Anodized aluminum base prevents ferrous chip buildup.
Frustration Free Tool Probe Alignments with our built-in No-Creep Adjusters
OEM alignment base is eliminated. Probe mounts directly to our base.
Three No-Creep Locking Adjusters provide precise, deterministic and fast alignments.

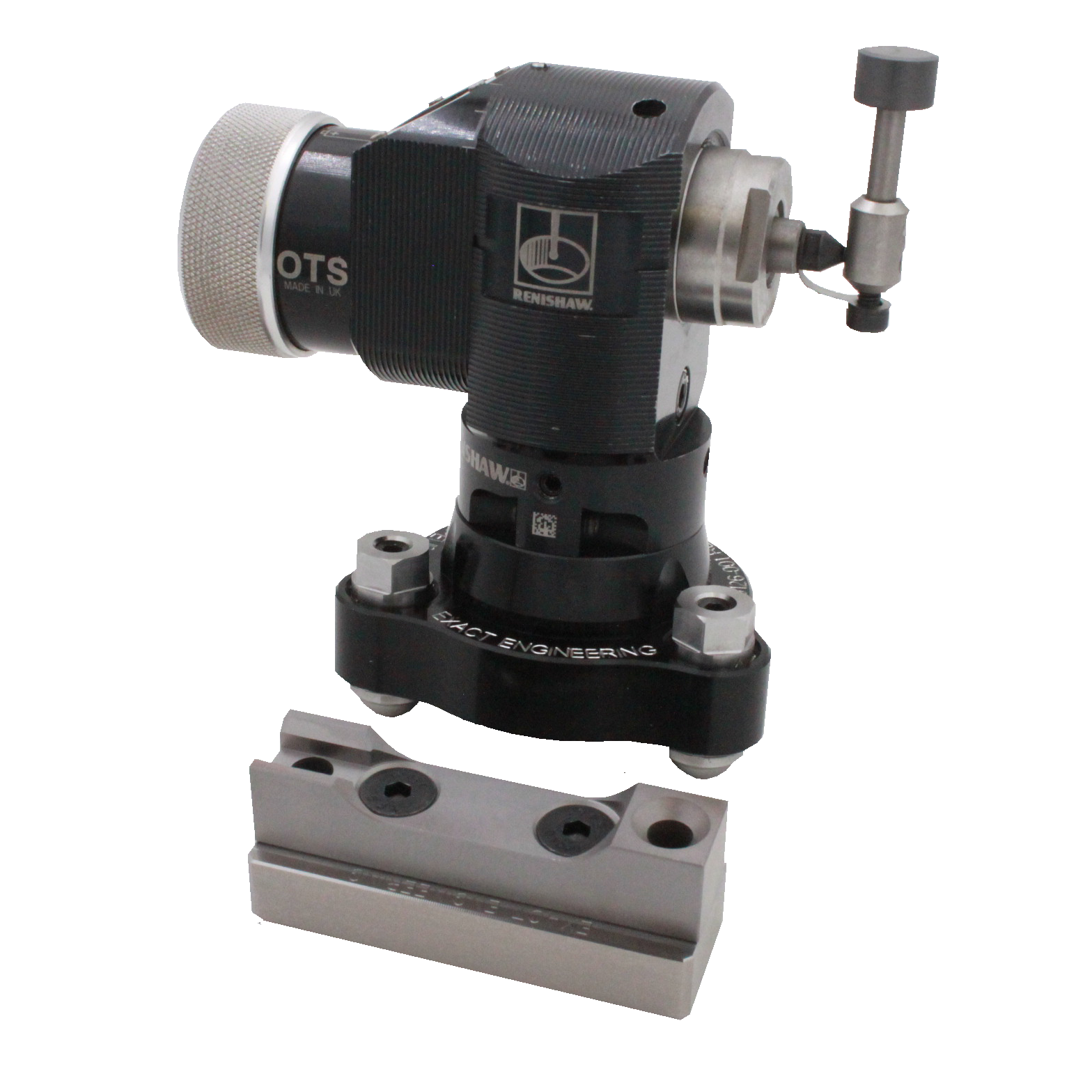

Instantaneously mount and de-mount a Renishaw OTS/RTS tool probe in seconds.
Patent pending design provides for instantaneous mounting and de-mounting of a tool probing system.
Repeatability < 3um.
Rated to 3g acceleration.
Completely free up your table when probe is removed.
Remove and replace the tool probe as often as desired – no re-calibration needed.
No tools or special skills required, use only your hands as rare earth magnet provides proper nesting forces.
Protect probe from damage during machining, stock changes etc.
Engineered, manufactured and tested in the USA by Exact Engineering.
